Gabion Retaining Wall


Chudleigh, Devon


Private Homeowner


Pavillion Construction

Contract Value


Services Provided

Contract Administration
Project Management
Site Investigation
Structural Design
Structural Drawing & Detailing
Tendering Process

The Project

A 12 metre long gabion retaining wall adjacent to a bend in the river, Kate Brook, collapsed after the supporting river bed was eroded by unusually high, fast flowing water which over-topped the river banks.

James Lockyer Associates designed a new 3m high gabion retaining wall, which was constructed on top of a new concrete base within the river to resist water scour.

Environment Agency Consent was obtained for the temporary works required within the river to create a dry working area.

  • Collapsed river bank
  • Collapsed river bank
  • Construction of new gabion retaining wall
  • Construction of new gabion retaining wall

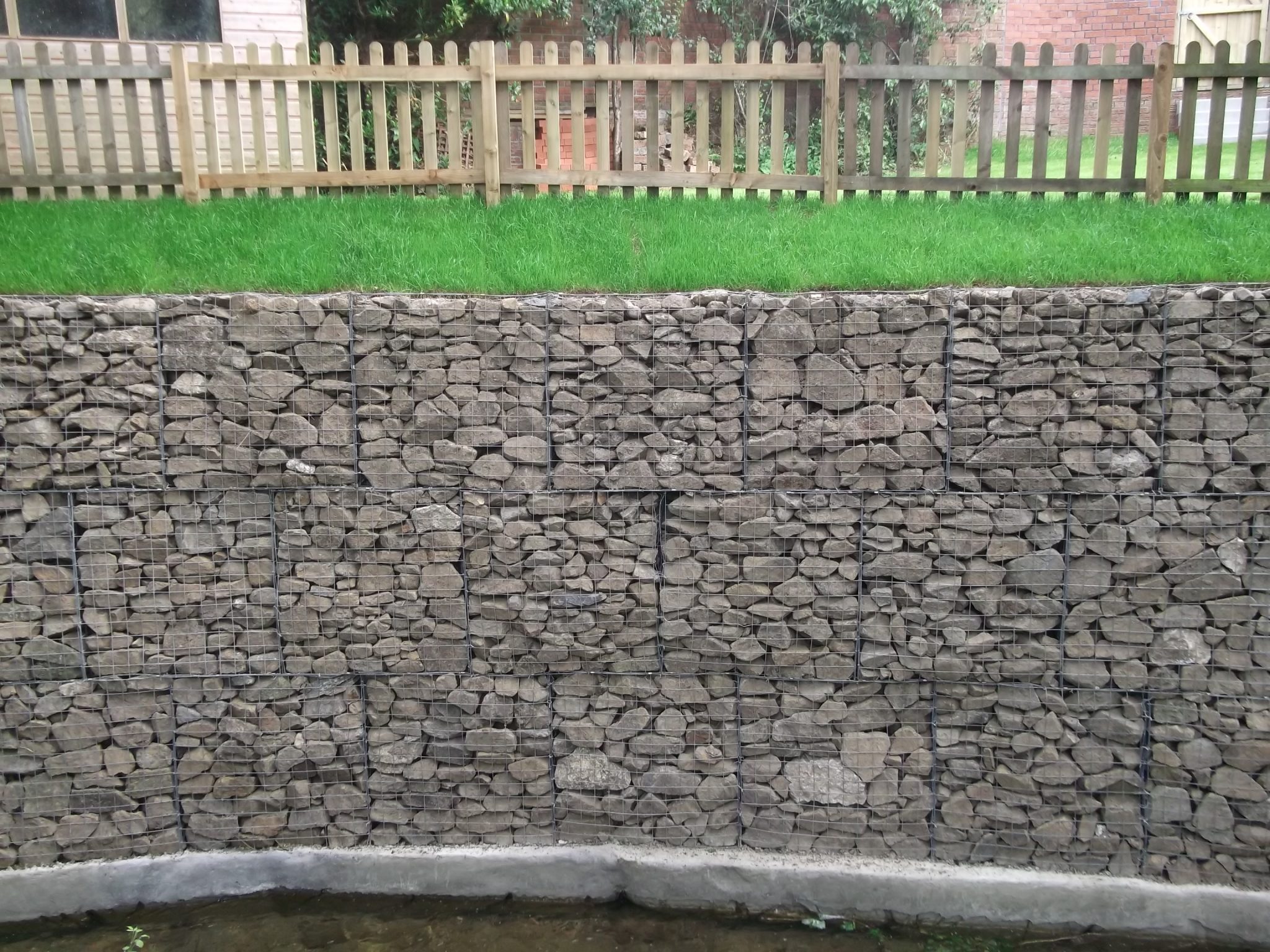

  • Finished gabion retaining wall
